● Comprehensive Automation Integration Solution
Powered by the SYNTEC Controller × LEANTEC
Robot platform and integrated with Jumbo Laser's automation expertise, this solution enables customers to achieve fully integrated, plant-wide smart factory automation.

● High-Performance Heavy-Payload Handling
Featuring a 20 kg payload capacity and 2,000 mm stacking height, the system delivers reliable 24/7 continuous operation, significantly improving production efficiency and throughput.

● Global Localized After-Sales Support
Backed by a comprehensive global service network, we provide prompt local technical support and maintenance, ensuring customers receive professional assistance throughout the deployment and operation of their smart automation systems.

Add to Inquiry List

PALLETIZING ROBOT

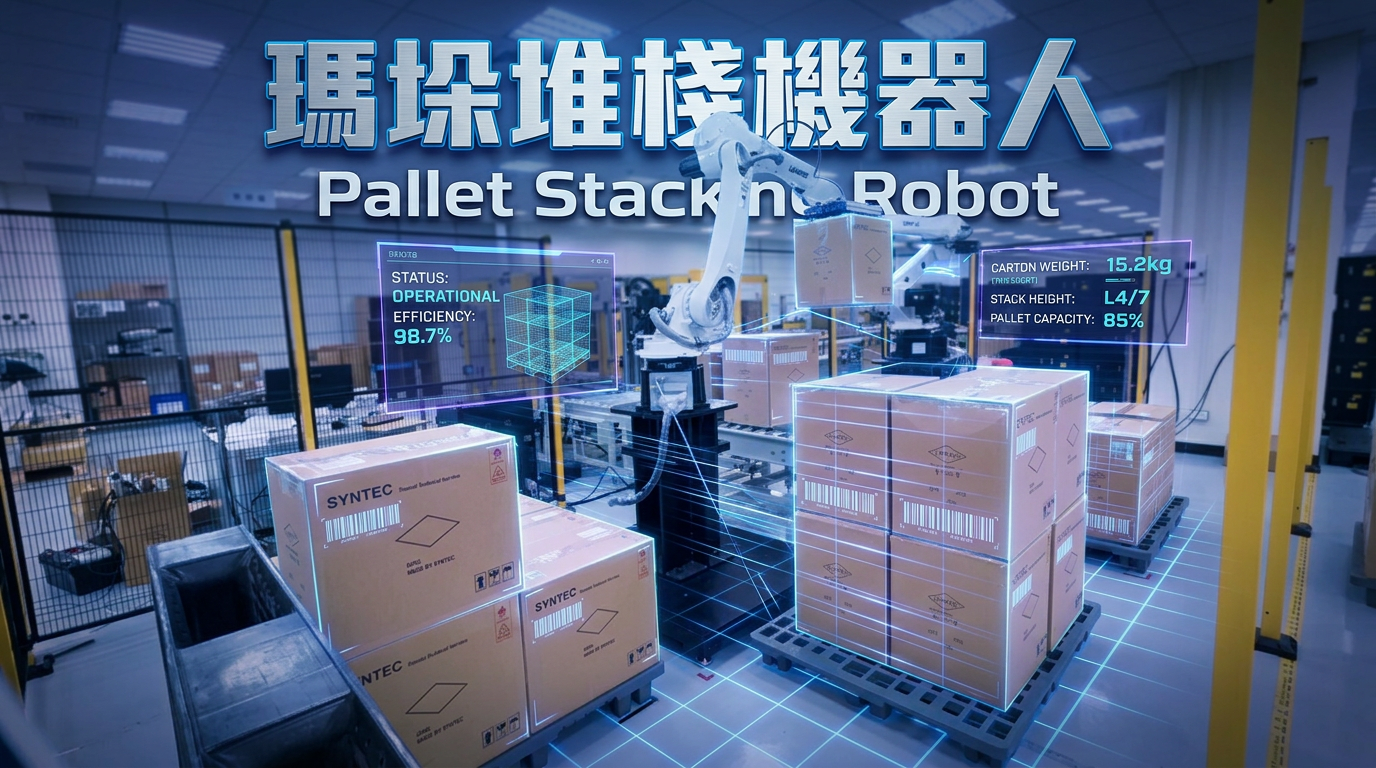

MADO Palletizing Robot

An unmanned packaging powerhouse specially designed for manufacturing factory production lines. By linking conveyor belt sensors, the Syntec/Leantech robot arm and vacuum suction system precisely transfer items onto pallets, achieving an integrated pipeline from material output to automatic stacking.

Max Payload

20 kg

Max Palletizing Height

2,000 mm

Inquire Online Now ＞

Product Advantages & Core Technologies

ADVANTAGE 01

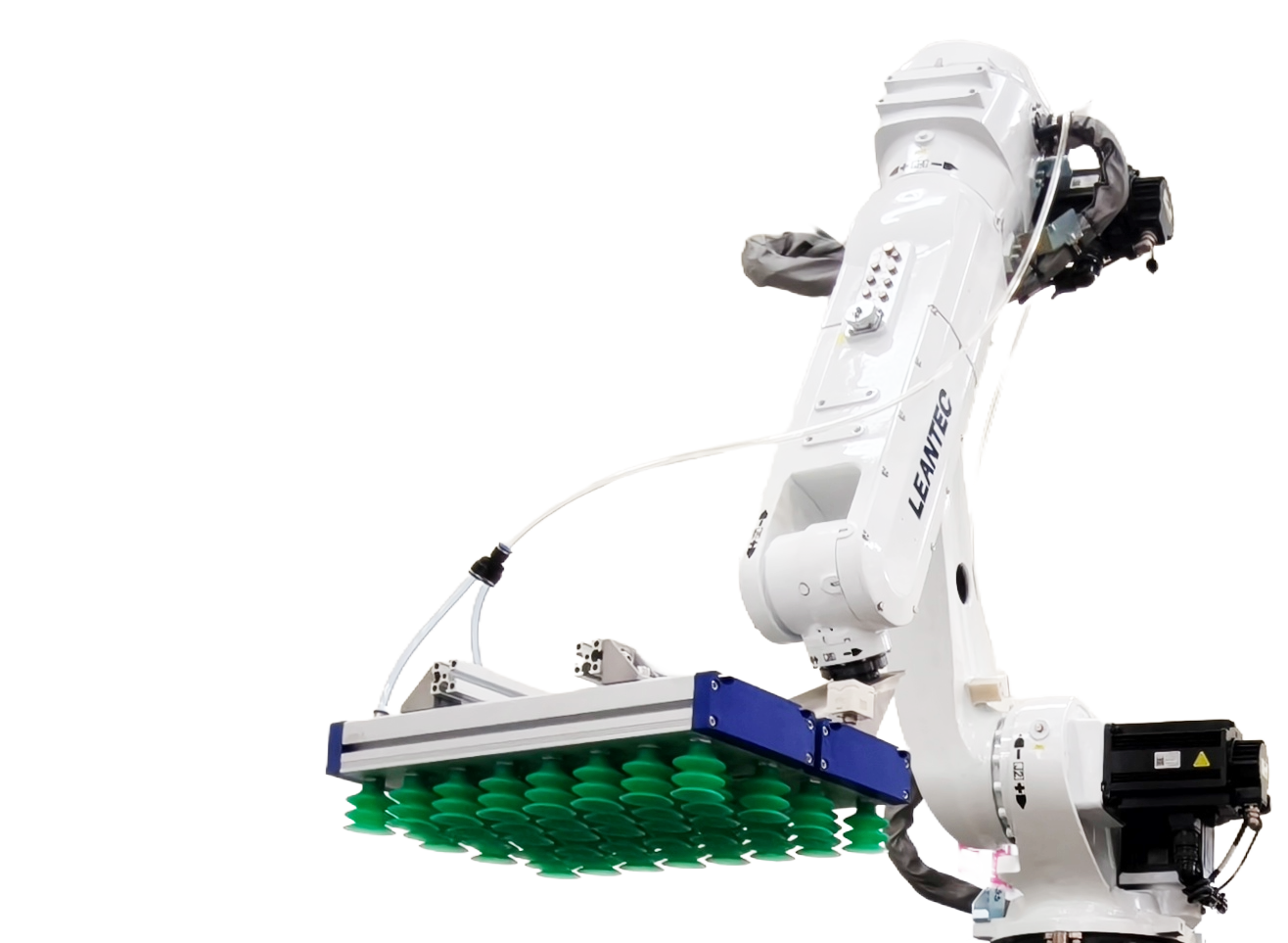

Automation Brain: Syntec System × Leantech Robot Arm

The core is equipped with the automated control "Syntec Control System" and integrated with the "Leantech Intelligent Robot Arm".

Same-Group Ecosystem: The controller and robot arm are seamlessly compatible, ensuring zero-delay signal transmission and smooth, uninterrupted movements.
Simple Operation: Intuitive Chinese/English user interface enables on-site operators to easily get started after short-term training.

ADVANTAGE 02

Heavy Duty Capacity: Up to 20kg Payload

The most labor-intensive part of manufacturing packaging lines is handling heavy boxes. MADO Palletizing Robot is specially designed for high loads:

High-Specification Load: Easily handles heavy boxes up to 20 kg, eliminating workplace injuries caused by long-term manual lifting.
Powerful Vacuum Suction: Equipped with an industrial-grade high-performance vacuum suction system, ensuring stability and safety even during high-speed movements.

ADVANTAGE 03

Precise Stacking: 2,000mm Max Palletizing Height

Manual stacking can easily lead to misalignment and collapse due to fatigue. MADO Palletizing Robot demonstrates ultimate precision:

Maximizing Space Utilization: The maximum palletizing height reaches up to 2,000 mm (including the pallet), perfectly optimizing the space inside trucks and containers.
Smart Auto-Alignment: The robot arm places boxes sequentially and layer-by-layer, preventing the risk of tipping during long-distance transportation.

ADVANTAGE 04

Seamless Connection: Fully Automated Integration

More than just an independent arm, it is a mature end-of-line packaging solution:

Automated Conveyor Transfer: After products are boxed and sent via the conveyor, the central control system immediately signals the robot arm to precisely suck and transfer them to the corresponding pallet.

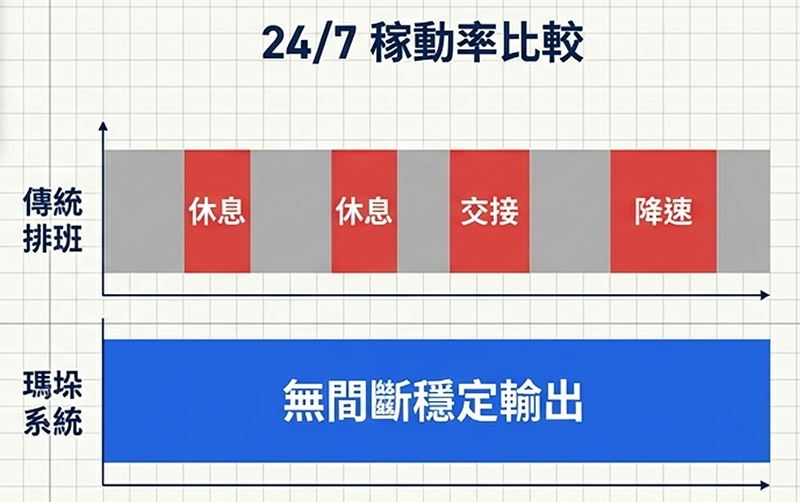

24/7 Uninterrupted Capacity: As long as the front-end process continues, the back-end can stably digest the output, eliminating bottlenecks in the packaging section.

Technical Specification

Technical Evaluation Item	Standard Parameter & Configuration
1. Max Box Weight for Suction	20 kg
2. Max Palletizing Height	2,000 mm (including pallet)
3. Palletizing Throughput Speed	8 ~ 12 boxes / minute (bpm) *Depends on actual transfer distance and box specifications
4. Robot Arm Max Working Radius	1,813 mm
5. Repeat Positioning Accuracy	±0.05 mm
6. Applicable Standard Pallet Dimensions	1100mm × 1100mm / 1200mm × 1000mm
7. Working Air Source Requirement	Pressure 0.5 ~ 0.7 MPa (Air consumption 150 L/min)
8. Rated Power Supply & Total Power	3-Phase AC 220V/380V (50/60Hz) / 4.5 kW
9. Control Brain & Communication Protocol	Syntec System / Supports Modbus TCP & EtherCAT

※ Note: JUMBO team provides customized gripper design and automated flow planning integration services.

GLOBAL SERVICE

Globalized Local After-Sales Service

Providing a seamless cross-border delivery experience, achieving a one-stop service of "order in Taiwan, deploy overseas". No matter where your production line is located, the JUMBO team can provide professional installation, training, and maintenance support nearby, ensuring stable operation of equipment around the world.

Order in Taiwan

The professional team at JUMBO Taiwan Headquarters is responsible for requirement evaluation, system planning, and equipment manufacturing, ensuring the highest quality of core technology and standards.

Overseas Deployment

With the global localized service network of Syntec Group, we provide on-site installation, technology transfer, and after-sales maintenance at overseas factories, ensuring barrier-free cross-border service communication.
Taiwan, Malaysia, Thailand, India, Turkey, USA, Chin

A demo machine is available on-site. For inquiries, please contact Chengbo Laser.

Schedule a Machine Viewing

FAQ

Q&A

Will there be smoke or odor during the laser marking process? How is it handled?

Some materials may generate a small amount of smoke or odor during laser marking, especially when using a CO₂ laser on materials such as wood or leather. We recommend customers use a dedicated laser fume extractor, which efficiently filters smoke and odors, keeping the workspace clean and maintaining air quality to ensure the health of operators.

What is the price range of laser marking equipment? What accessories and services are included?

The price of a laser marking machine varies depending on the laser type, power, configuration, and functions (such as whether it includes an automation system or vision positioning). Prices typically range from several hundred thousand to over one million NTD. Standard configurations usually include the main unit, control software, computer (optional), fixtures (optional), installation, and training. We will provide a detailed quotation based on your specific requirements.

What are the differences between laser welding and traditional welding? What are the main advantages?

The primary difference between laser welding and traditional welding lies in the heat source and energy density. Laser welding offers high energy density, low heat input, fast welding speed, minimal thermal deformation, narrow and deep weld seams, no need for filler material (in certain cases), and the ability to weld difficult-to-weld materials. Traditional welding, on the other hand, often results in a larger heat-affected zone, more noticeable deformation, and slower speed.

How to choose the power of a laser welding machine? What are the differences between different power levels?

The choice of laser welding machine power depends on the type of material, thickness, required welding depth, and welding speed. Generally, higher power allows for processing thicker materials, achieving deeper welds, and welding at faster speeds. Common power ranges from several hundred watts to several kilowatts.Jumbo provides testing services and can recommend the most suitable power level based on your specific needs.

Is the equipment difficult to operate? Does it require professional personnel?

Our equipment is designed with user-friendliness in mind, featuring an intuitive and simple interface. We provide detailed operation manuals and on-site training, enabling general technicians to operate the machine after instruction. Jumbo also offers fixture design and automation design services to reduce labor requirements.

How to evaluate which laser welding machine best fits our needs?

To help you make the best choice, we need to understand your welding requirements in detail, including:

Type and thickness of materials
Desired welding depth and width
Daily or monthly production capacity requirements
Existing production line setup
Specific requirements for welding quality, precision, and efficiency
Budget range

Based on this information, Jumbo professional team will recommend the most suitable equipment and configuration for you.
